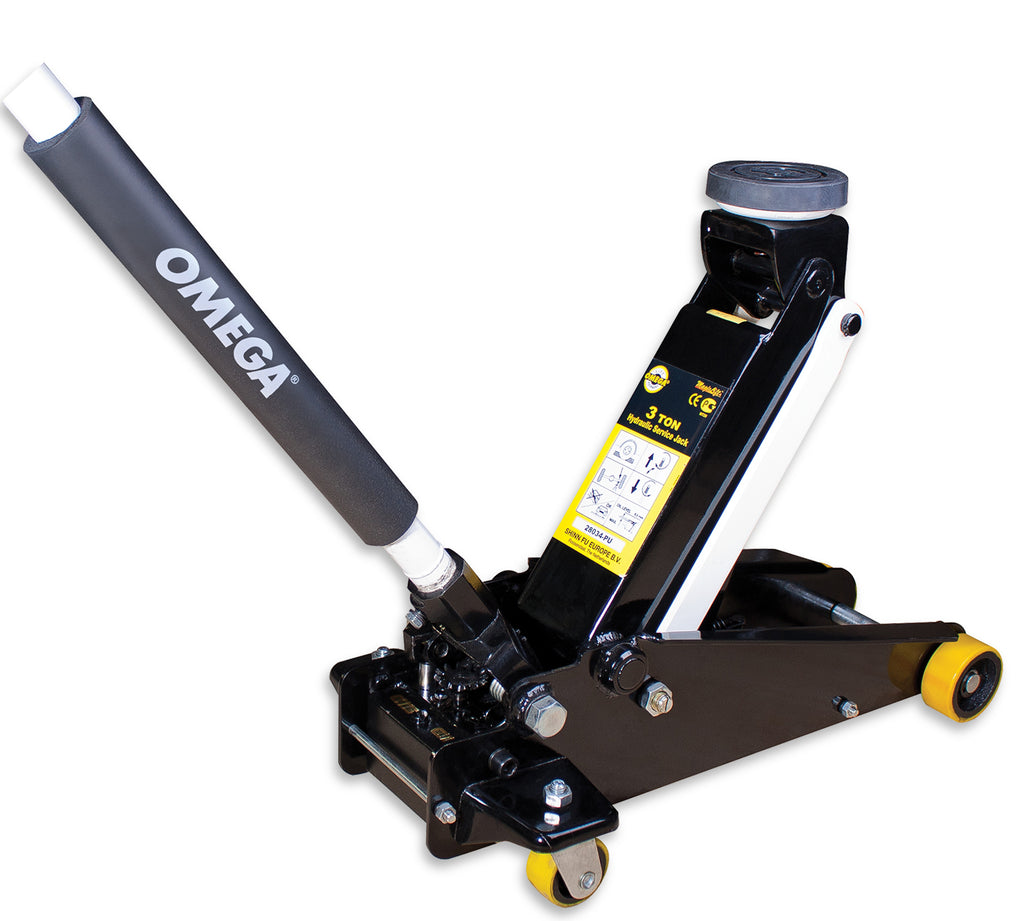

Omega 3 Ton Trolley Jack

Product Code: 28034-PU

DESCRIPTION

Omega 3 Ton Trolley Jack

• PU Wheels give easy and silent movement and protects the workshop floor.

• Rubber lift pad prevents any scratching of vehicle chassis.
• Soft foam handle protection prevents accidental damage to the vehicle’s bodywork.
• Minimum Oil Leakage risk, due to completely welded oil reservoir.

TECHNICAL SPECIFICATIONS

Capacity: 3000 Kg
Min height: 138 mm
Max height: 504 mm
Weight: 28.5 kg

See Drawing above

A: 138 mm
B: 504 mm
I: 85 mm
L: 613 mm
W: 308 mm

Instruction Manual

REMEMBER: JACKS ARE FOR LIFTING ONLY. ALWAYS USE AXLE STANDS TO SUPPORT THE LOAD.
