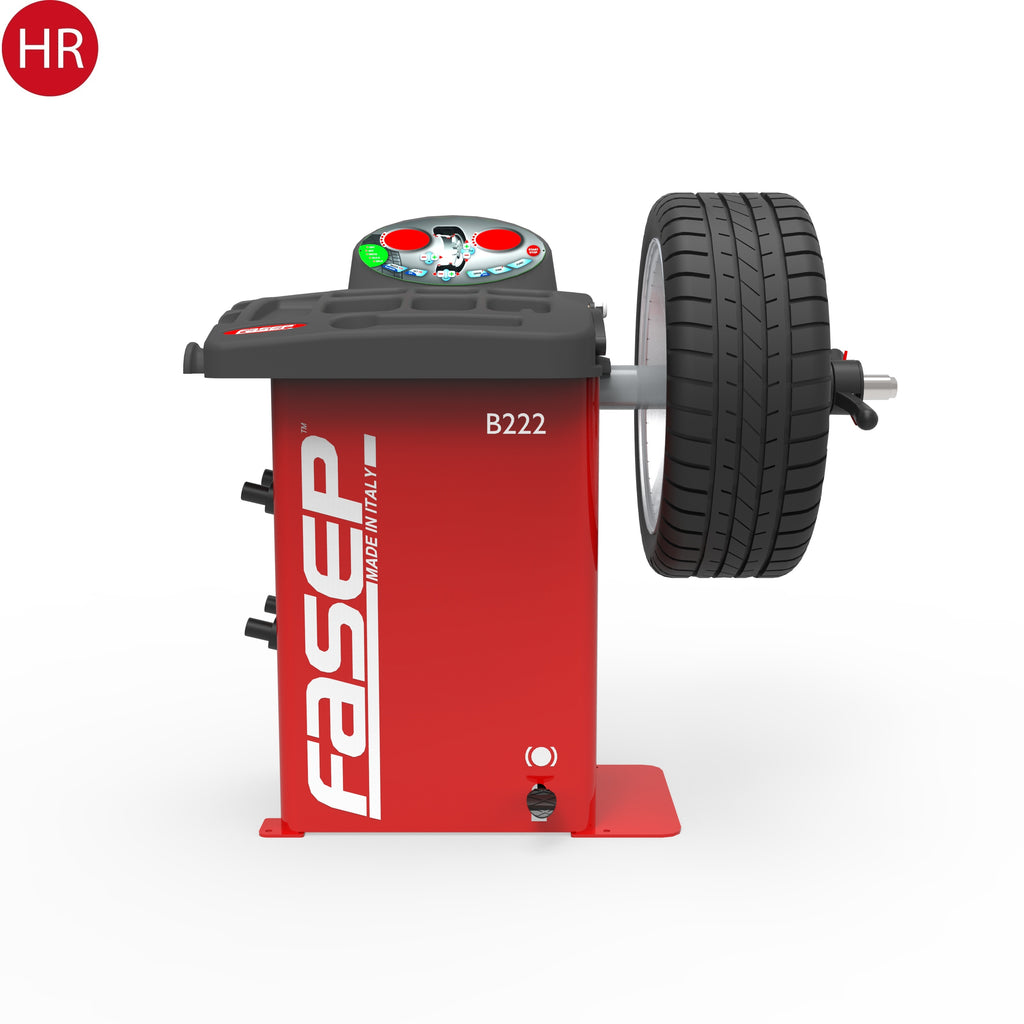

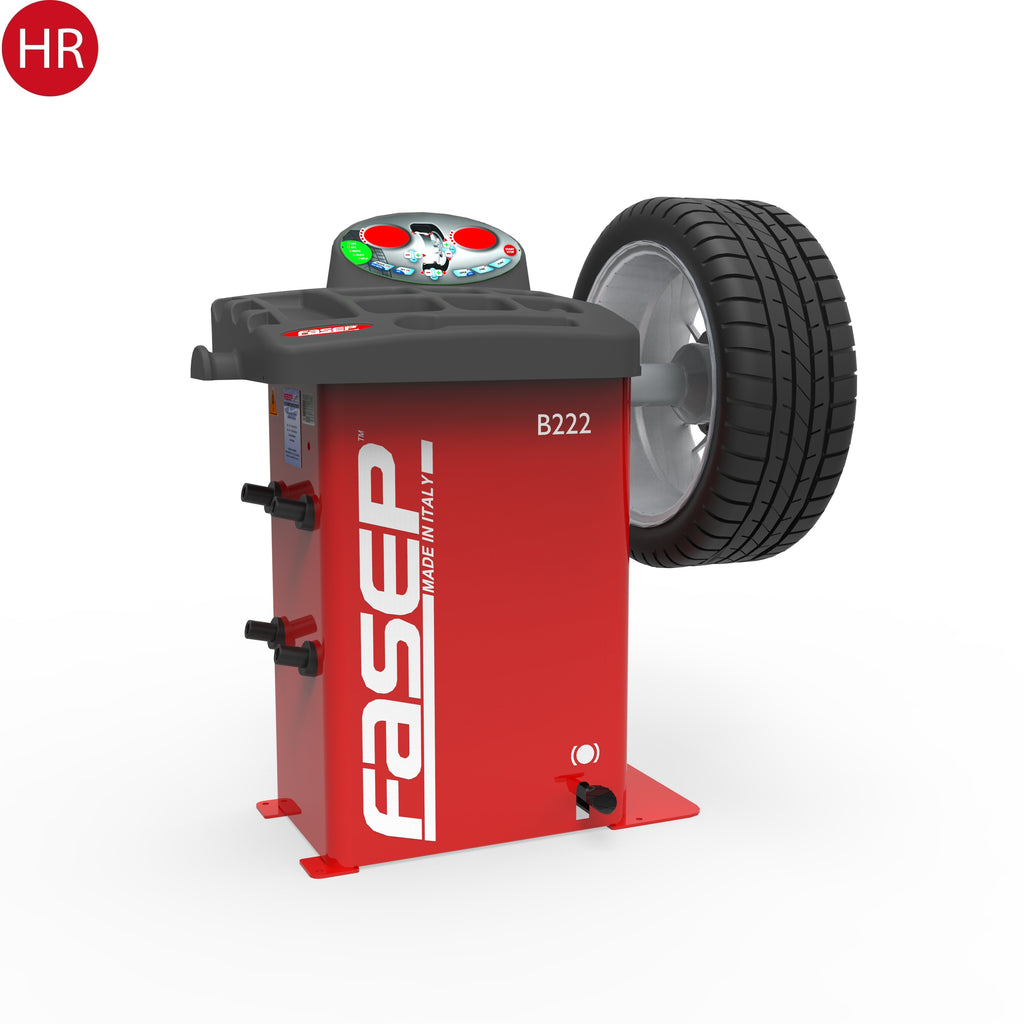

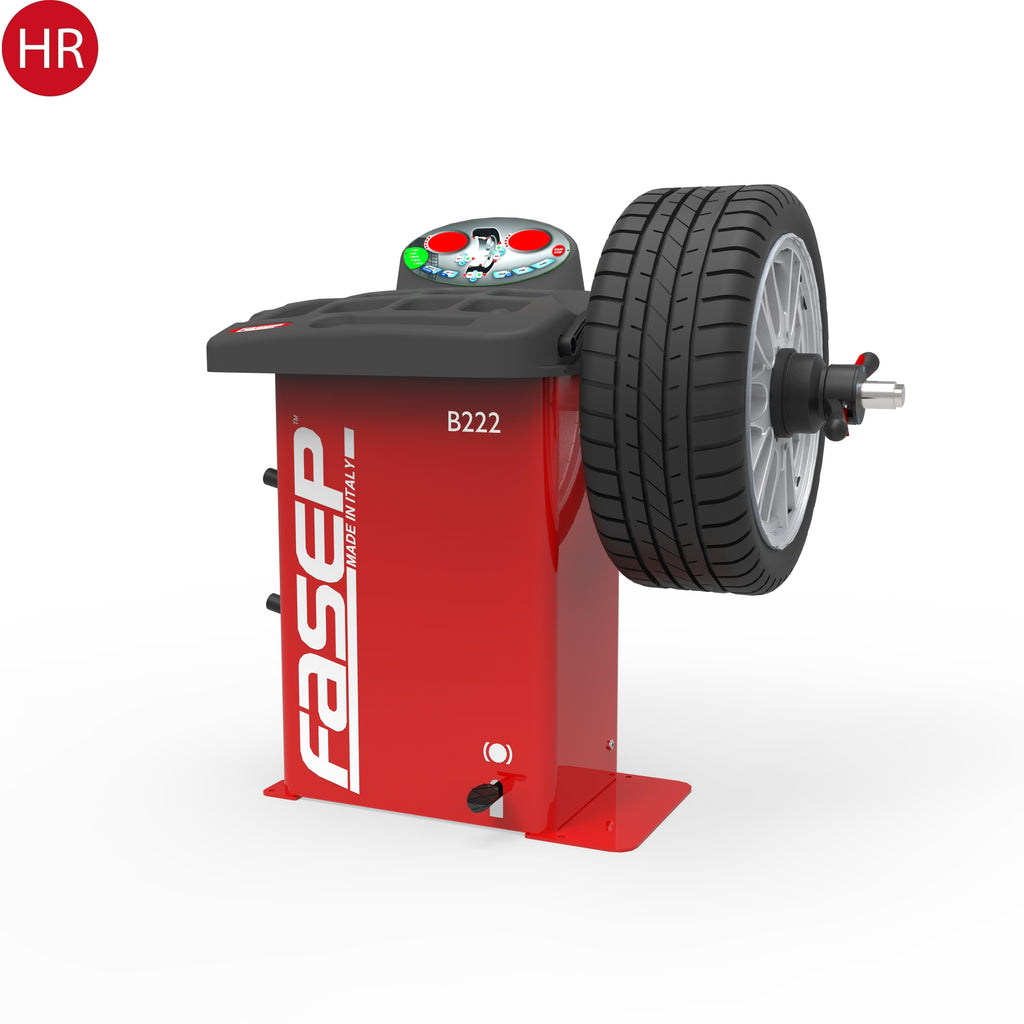

Fasep BV222 Wheel Balancer

Product Code: E618.017

This wheel balancer is space-saving and an innovative design, B222 offers accuracy of bigger models. Space requirements are set to a minimum but you still get all features and special programs to balance any type of wheel to perfection. The heart of the balancer is built around the TriSensor System, a FASEP exclusive design, and IFS System (integrated-flange shaft) for maximum centering accuracy.

• Automatic Digital wheel balancer
• Suitable for Car, Vans, SUVs and Light Trucks wheels
• 32-bit high-tech electronics G6.SMART
• Internet connection via WIFI
• 3Ph Motor with electronic control (inverter)
• Low Speed (98 RPM)
• Control Panel with multifunction keypad (double LED display)
• BASIC level wheel balancing software
• IFS Light flange system (max 75 kg)
• TRI.S3NSOR 3 Piezo sensors measuring system
• Shaft 40 mm
• Shaft height 665 mm
• Shaft length 210 mm
• 256 steps position sensor
• Compact cabinet
• Quick-Lock nut
• Mechanical brake pedal for easy wheel mounting and application of weights
• Automatic Start-Stop
• Stop-on-top
• 2D automatic data input (distance+diameter)
• ABS weights holder (6 compartments for weights, 3 for cones, 2 for tools)
• Self Calibration with Calibration weight
• Self Diagnostic
• ALU programs (stick-on weights)
• ALU-SE / Alu-PAX program for application of stick-on weights
• MOTO program
• User Setup
• SPLIT program (Hidden Weights)
• MARS program for Static minimization
• STATS program
• FCC program
• Cones 42-98 mm
• Max wheel weight 75 kg
• Rim max diam. 10-26"
• Max wheel diam 864 mm (34") (with wheel-guard)
